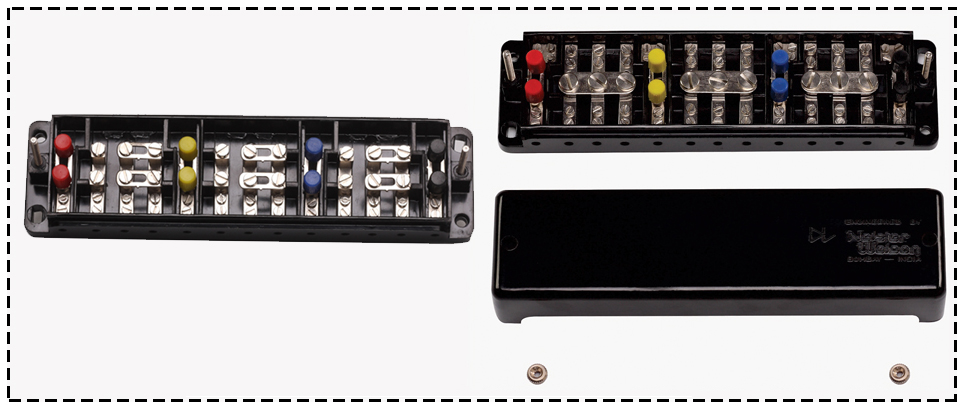

Test Terminal Blocks: NW34 Series
Features
- Facilitates easy testing.
- Rugged construction.
- High electrical strength.
- Extended top transparent cover-optional.
- Transparent top cover-optional
- Housing & Top Cover : Phenolic moulding, Black
- Terminals, screws & links : Brass, Nickel plated.
- Rated voltage : 600 V max.
- Rated current : 30 A max.
NW34-SFC-SC (Screw Type Front Connection With Standard Cover)
NW34-SFC-TC (Screw Type Front Connection With Transparent Cover)

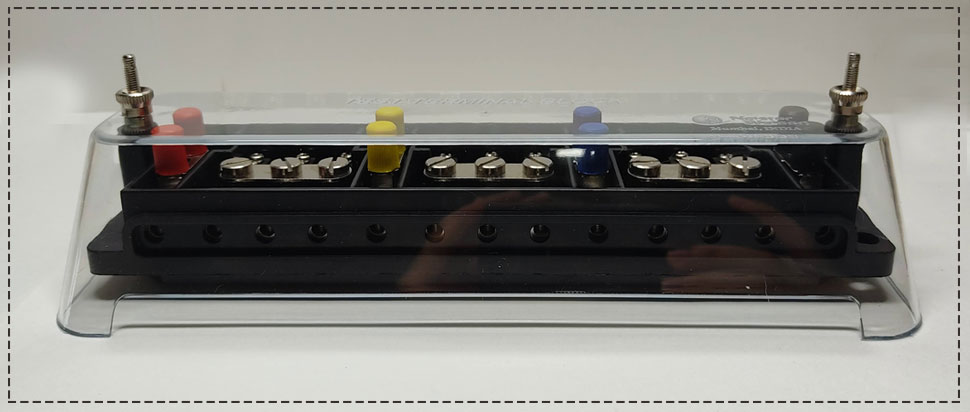

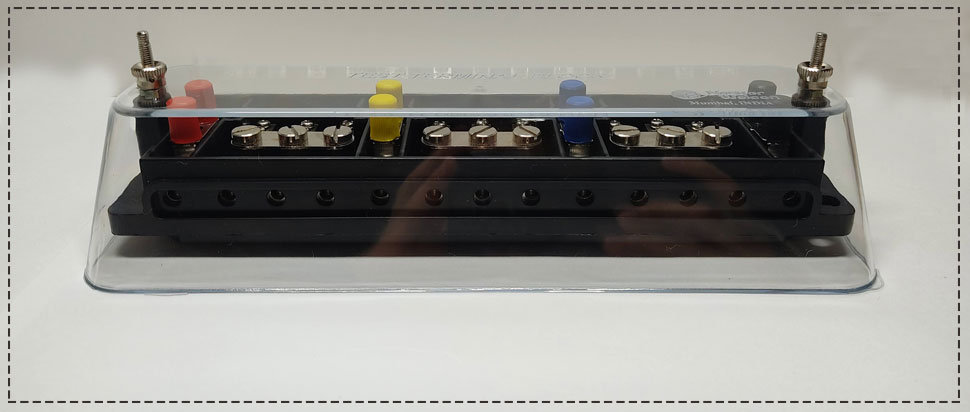

NW34-SFC-EC (Screw Type Front Connection With Extended Transparent Cover)
NW34-SFC-SEC (Screw Type Front Connection With Slotted Extended Transparent Cover)

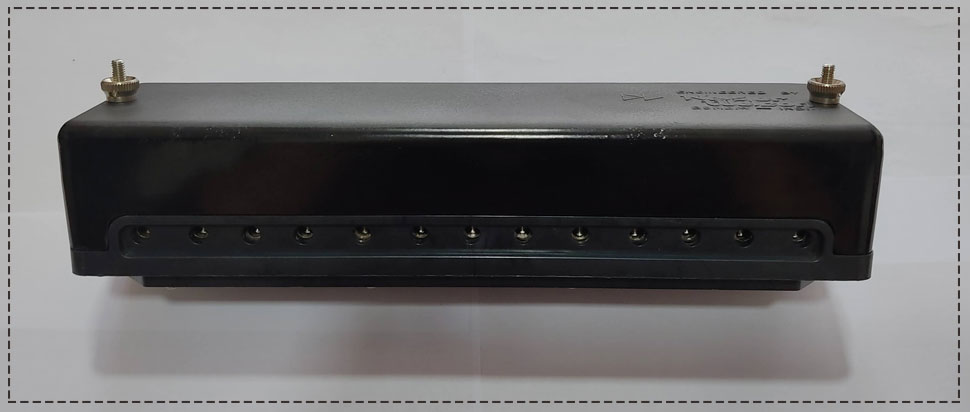

NW34-SBC-SC (Screw Type Back Connection With Standard Cover)

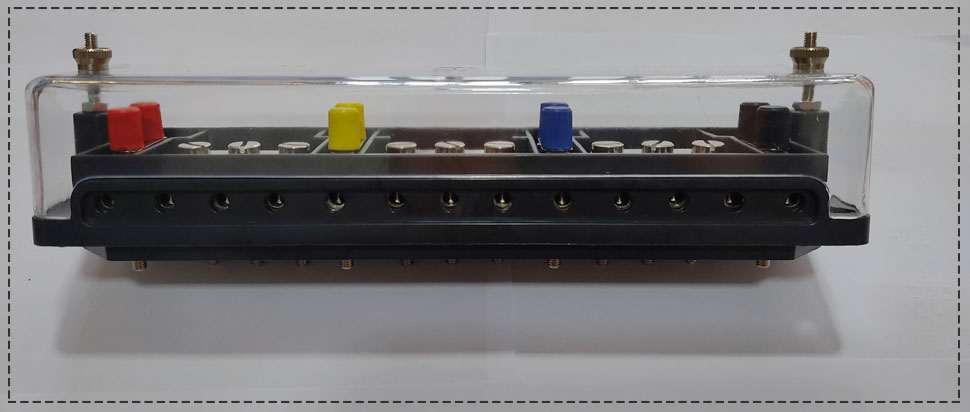

NW34-SBC-TC (Screw Type Back Connection With Transparent Cover)

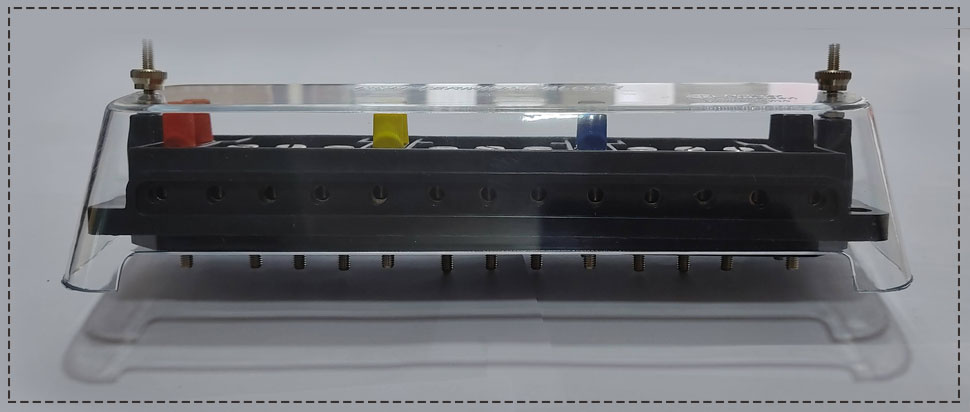

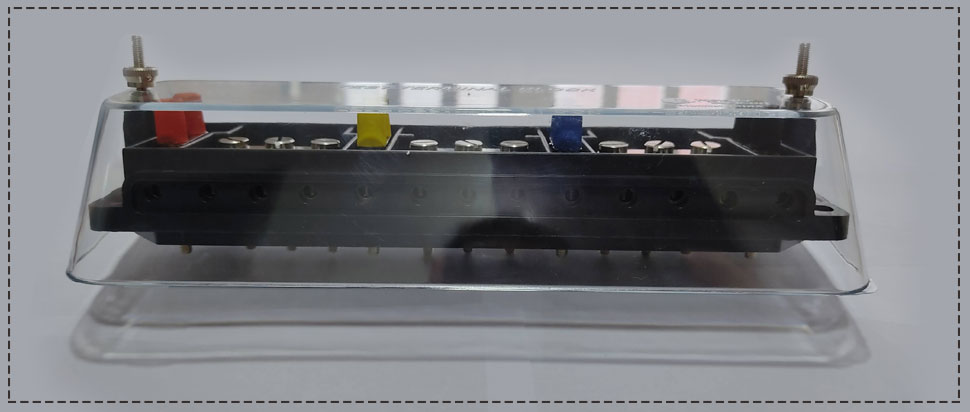

NW34-SBC-EC (Screw Type Back Connection With Extended Transparent Cover)
NW34-SBC-SEC(Screw Type Back Connection With Slotted Extended Transparent Cover)

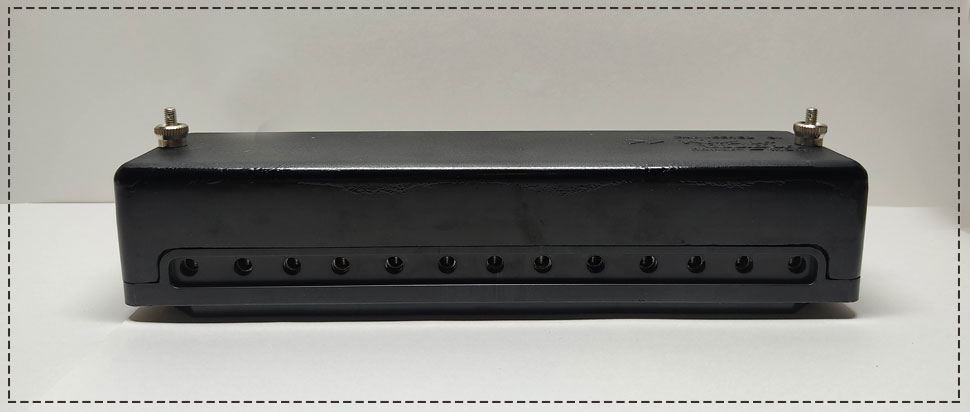

NW34-LFC-SC (Link Type Front Connection With Standard Cover)

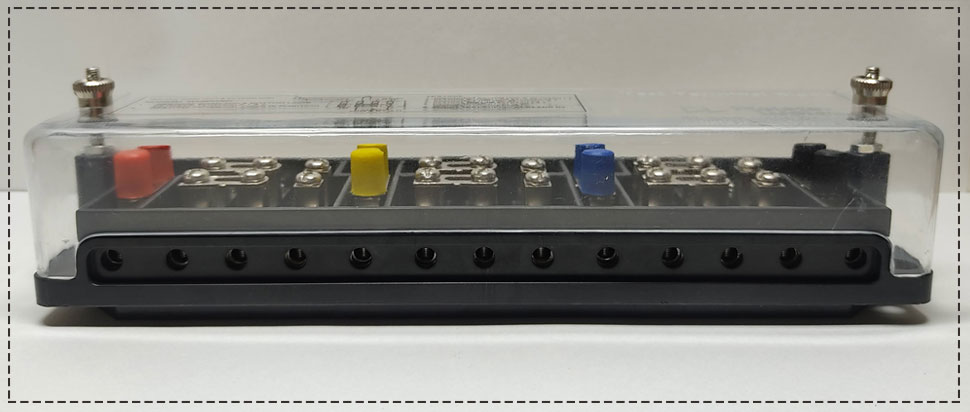

NW34-LFC-TC (Link Type Front Connection With Transparent Cover)

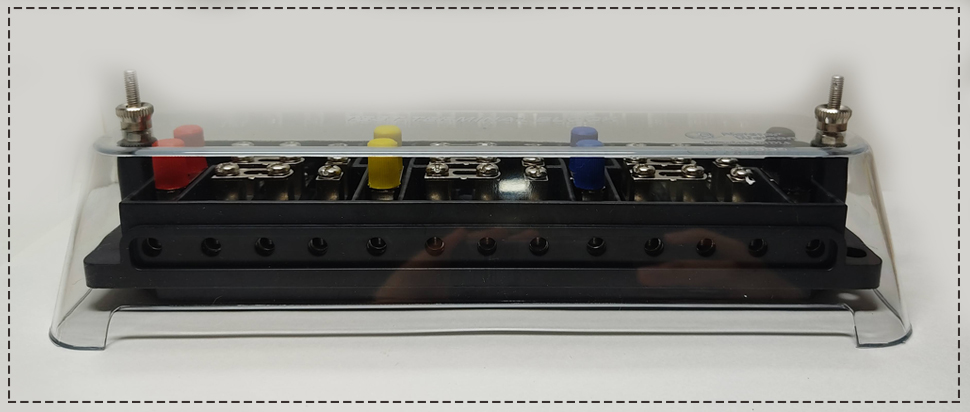

NW34-LFC-EC(Link Type Front Connection With Extended Transparent Cover)
NW34-LFC-SEC(Link Type Front Connection With Slotted Extended Transparent Cover)
NW34-LBC-SC (Link Type Back Connection With Standard Cover)

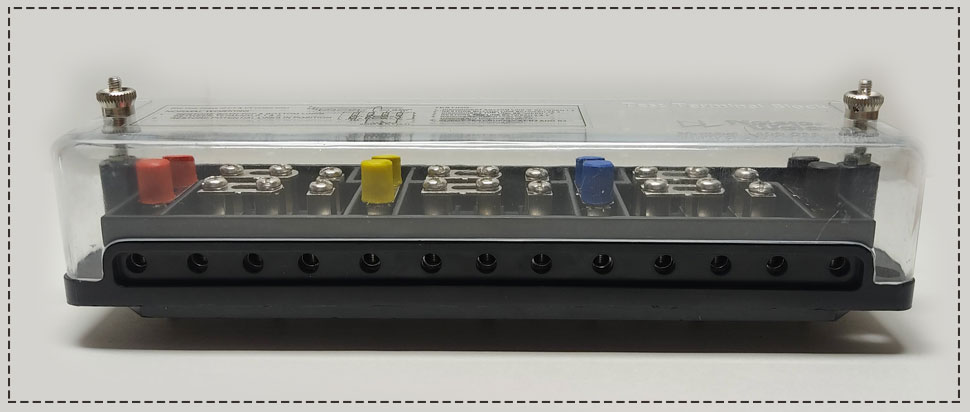

NW34-LBC-TC (Link Type Back Connection With Transparent Cover)

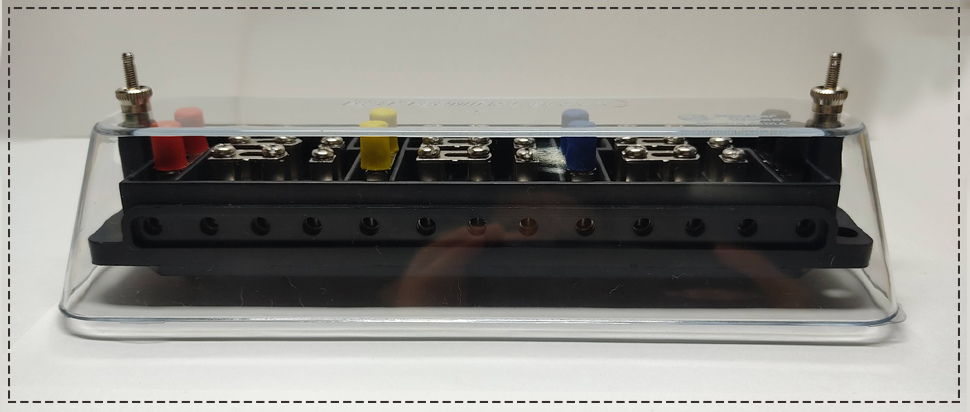

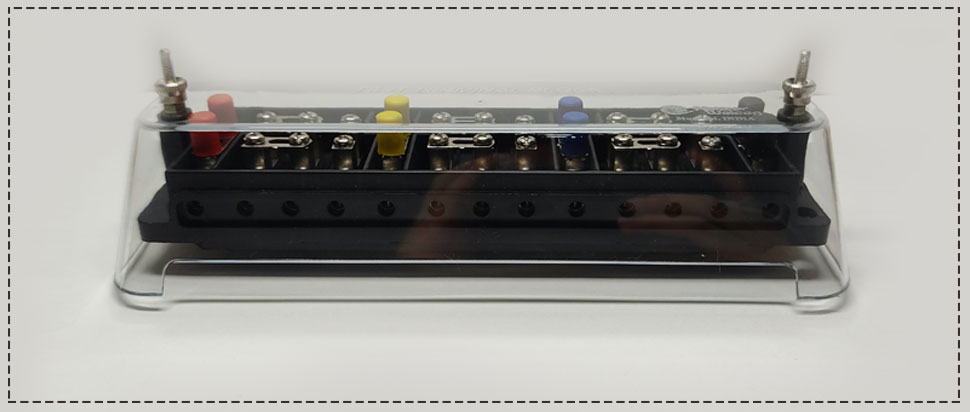

NW34-LBC-EC (Link Type Back Connection With Extended Transparent Cover)
NW34-LBC-SEC (Link Type Back Connection With Slotted Extended Transparent Cover)
| TYPE | CODE |
|---|---|
| 3-Phase, 4-Wire Screw type front connected with black Standard cover | NW34-SFC-SC |
| 3-Phase, 4-Wire Screw type front connected with transparent Polycarbonate cover | NW34-SFC-TC |
| 3-Phase, 4-Wire Screw type front connected with extended transparent Polycarbonate cover | NW34-SFC-EC |
| 3-Phase, 4-Wire Screw type front connected with slotted extended transparent Polycarbonate cover | NW34-SFC-SEC |
| 3-Phase, 4-Wire Screw type back connected with black Standard cover | NW34-SBC-SC |
| 3-Phase, 4-Wire Screw type back connected with transparent Polycarbonate cover | NW34-SBC-TC |
| 3-Phase, 4-Wire Screw type back connected with extended transparent Polycarbonate cover | NW34-SBC-EC |
| 3-Phase, 4-Wire Screw type back connected with slotted extended transparent Polycarbonate cover | NW34-SBC-SEC |
| 3-Phase, 4-Wire Link type front connected, with black Standard cover | NW34-LFC-SC |
| 3-Phase, 4-Wire Link type front connected with transparent Polycarbonate cover | NW34-LFC-TC |
| 3-Phase, 4-Wire Link type front connected with extended transparent Polycarbonate cover | NW34-LFC-EC |
| 3-Phase, 4-Wire Link type front connected with slotted extended transparent Polycarbonate cover | NW34-LFC-SEC |
| 3-Phase, 4-Wire Link type back connected with black Standard cover | NW34-LBC-SC |
| 3-Phase, 4-Wire Link type back connected with transparent Polycarbonate cover | NW34-LBC-TC |
| 3-Phase, 4-Wire Link type back connected with extended transparent Polycarbonate cover | NW34-LBC-EC |
| 3-Phase, 4-Wire Link type back connected with slotted extended transparent Polycarbonate cover | NW34-LBC-SEC |
